Introduction
In the world of metal fabrication, precision and consistency are the cornerstones of quality production. Among the many components that contribute to achieving this precision, the design and configuration of forming tools play a crucial role. These tools are vital for shaping and bending sheet metal into the desired form using press brake machines. A deep understanding of how these tools work, especially the types, functions, and maintenance of press brake dies, helps manufacturers produce accurate and reliable parts efficiently.
Overview of Press Brake Operation

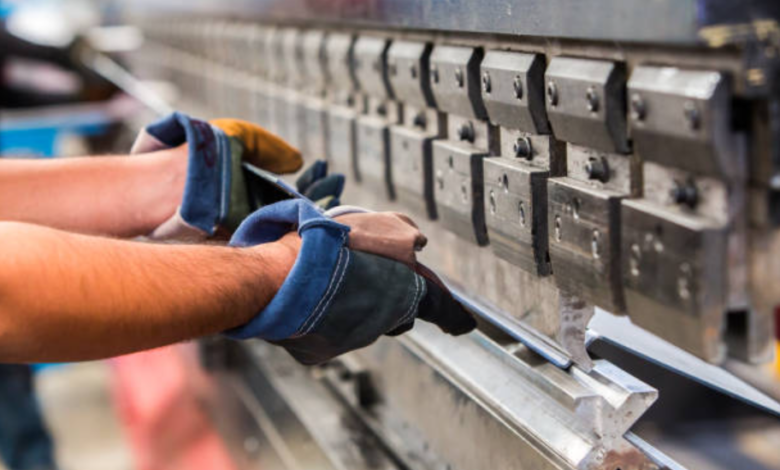

A press brake is a powerful machine used to bend sheet metal into various shapes and angles. The process involves pressing a punch (upper tool) into a die (lower tool), which holds the material in place and forms it to the desired angle. The selection of the right tooling determines the accuracy, strength, and finish of the final product.
Every die and punch combination has specific applications, depending on factors like metal thickness, type of bend, and material properties. Understanding these parameters helps in achieving accurate results without causing stress cracks or material damage.
See also: The Future of Cross-Border Marketing: Blending Culture and Technology
Role of Dies in Metal Bending
Dies are one of the most important components of the press brake setup. They are positioned at the lower part of the machine and determine the final angle, radius, and shape of the bend. While the punch applies downward pressure, the die provides the resistance and shape necessary for forming the metal.
The choice of die depends on the type of bending operation. Using the wrong die can lead to inaccurate bends, tool damage, or even machine overload. Therefore, selecting suitable dies for each project is essential for precision and safety.
Types of Press Brake Dies
There are various types of dies used in press brake dies each designed for specific bending tasks. Below are the most common categories:
V-Dies
V-dies are the most widely used type for general bending applications. They come in different V-widths, which must be chosen based on the sheet metal thickness. The general rule is that the V-die opening should be about eight times the thickness of the material.
U-Dies
U-dies have a U-shaped groove and are typically used for forming rounded or curved bends rather than sharp angles. They are suitable for delicate operations requiring a smoother finish.
Acute Angle Dies
These dies are designed for making bends sharper than 90 degrees, often used in air bending processes where precision is key.
Gooseneck Dies
Gooseneck dies feature a curved profile that allows clearance for forming complex shapes without damaging the workpiece. They are ideal when working on parts with return flanges or other intricate geometries.
Hemming Dies
Hemming dies are used for flattening the edges of sheet metal after the initial bend. This process is common in applications like automotive panels and enclosures, where smooth edges are essential.
Offset Dies
These dies enable the creation of Z-shaped bends in a single stroke, eliminating the need for multiple tool changes and increasing productivity.
Radius Dies
Radius dies are designed to produce large-radius bends. They are useful for materials that are prone to cracking or when the design requires a specific curvature rather than a sharp fold.
Material and Quality Considerations
The performance and lifespan of press brake dies depend greatly on the material used in their construction. High-quality tool steels are preferred for their durability, wear resistance, and ability to withstand repeated stress.
Common materials include:
- Standard Tool Steel (C45, 42CrMo4): Suitable for low- to medium-volume operations.
- Hardened Steel: Provides extended tool life for high-production environments.
- Carbide-Tipped Dies: Offer superior wear resistance for precision bending of hard materials.
Surface treatments such as nitriding or coating can further enhance durability and reduce friction during bending operations.
Importance of Proper Die Selection
Choosing the right die is crucial for achieving consistent and accurate results. The die opening width, depth, and shape must correspond with the material thickness and desired bend radius. Incorrect die selection can lead to several issues, such as:
- Material cracking or wrinkling.
- Uneven or inaccurate angles.
- Excessive tonnage requirements, leading to tool or machine damage.
Operators often refer to tonnage charts and bend allowance formulas to determine the correct die size and type for each job.
Die Maintenance and Storage
Regular maintenance is vital for prolonging the life of press brake dies. Since these tools experience high pressure and friction, they must be kept clean and properly lubricated to prevent wear and corrosion.
Maintenance best practices include:
- Cleaning dies after every shift to remove metal particles and oil residue.
- Inspecting for cracks, dents, or burrs before use.
- Applying protective coatings to prevent rust.
- Storing dies in dedicated racks or storage systems to avoid damage.
Proper storage systems also make it easier to organize and retrieve tools quickly, reducing downtime during production.
Safety Precautions When Handling Dies
Handling heavy press brake dies requires caution and proper technique to prevent injury and tool damage. Operators should always use lifting devices or mechanical aids when moving large dies. Additionally, ensuring the machine is powered off during installation or removal is critical to safety.
Other important precautions include:
- Verifying that dies are securely clamped before operation.
- Avoiding overloading the press brake beyond its rated capacity.
- Wearing protective gloves and safety footwear during tool setup.
Advancements in Die Technology
Modern manufacturing demands have led to significant advancements in die technology. Precision-ground dies are now common in CNC press brakes, providing high repeatability and accuracy.
Some modern innovations include:
- Quick-change tooling systems that reduce setup time.
- Hydraulic clamping systems for faster die installation.
- Segmented dies allowing flexibility for complex or small parts.
- Laser-measured die calibration to ensure alignment accuracy.
These innovations contribute to improved productivity, safety, and precision in metal fabrication.
Applications Across Industries
Press brake dies are essential in a variety of industries, including:
- Automotive: For forming body panels and chassis components.
- Aerospace: Where precision and tight tolerances are vital.
- Construction: For manufacturing structural and decorative metal parts.
- HVAC: For bending ductwork and enclosures.
Each industry requires specific tooling configurations depending on the material and end-product requirements.
Conclusion
The success of any bending operation depends greatly on the quality and suitability of the tools in use. Understanding the design, selection, and maintenance of press brake dies is vital for achieving precision and efficiency in metal fabrication. With the right dies and proper care, manufacturers can produce consistent, high-quality parts while extending the life of their equipment.
Continuous advancements in tooling technology, including modular designs and automated clamping systems, are making bending operations faster and more accurate than ever. Investing time in proper tool management not only enhances productivity but also ensures safer and more sustainable manufacturing processes in the long run.
